Price: $10.89
(as of Sep 09, 2023 08:16:37 UTC – Details)

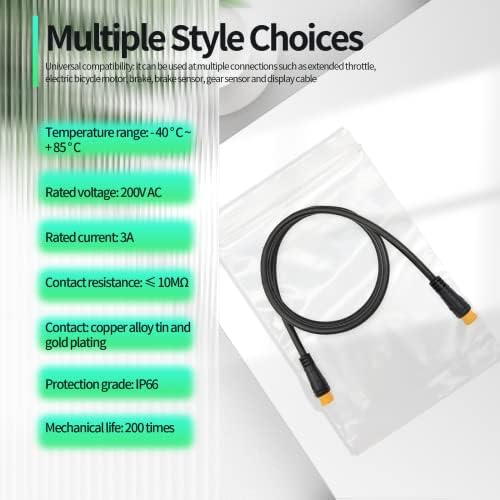

Ebike Extension Cable Parameter:
- Brand: JULET
- Model: Double-ended waterproof signal line
- Temperature range: -40 ° C ~ +85 ° C
- Rated voltage: 200V AC
- Contact resistance: ≤10mΩ
- Insulation resistance: ≥10MΩ under normal conditions and humid conditions
- Withstand voltage: AC 200V 50Hz 1 minute without breakdown or flashing
- Contact: Copper alloy tin/gold plating
- Protection level: IP66
- Mechanical life: 200 times
- Maximum outer diameter: 9mm
- Use wire specification: 0.05mm-0.2mm 2
- Applications: Power supply and signal transmission for electrical and electronic equipment（Light/Throttle/Ebrake/Display/PAS/sensor)

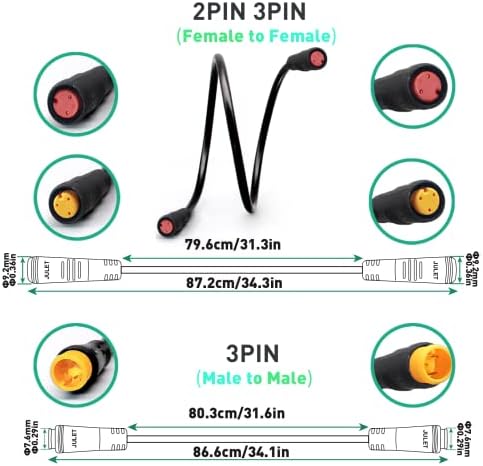

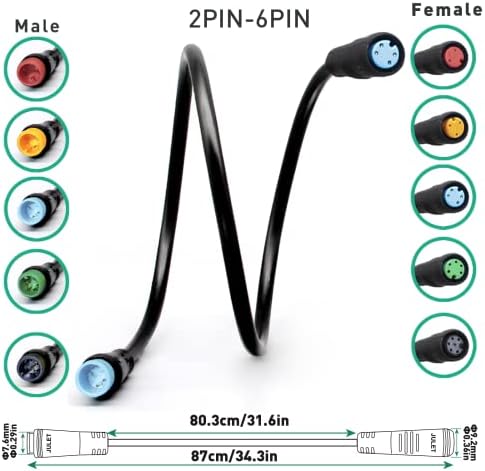

Cable Length:
- 2 pin male-male 800mm
- 2 pin female-female 800mm
- 3 pin male-male 800mm
- 3 pin male-female 800mm
- 3 pin female-female 800mm
- 4 pin male-female 800mm
- 5 pin male-female 800mm
- 6 pin male-female 800mm
- 800mm is enough for all conventional electric bicycles, electric motorcycles, and electric scooters
